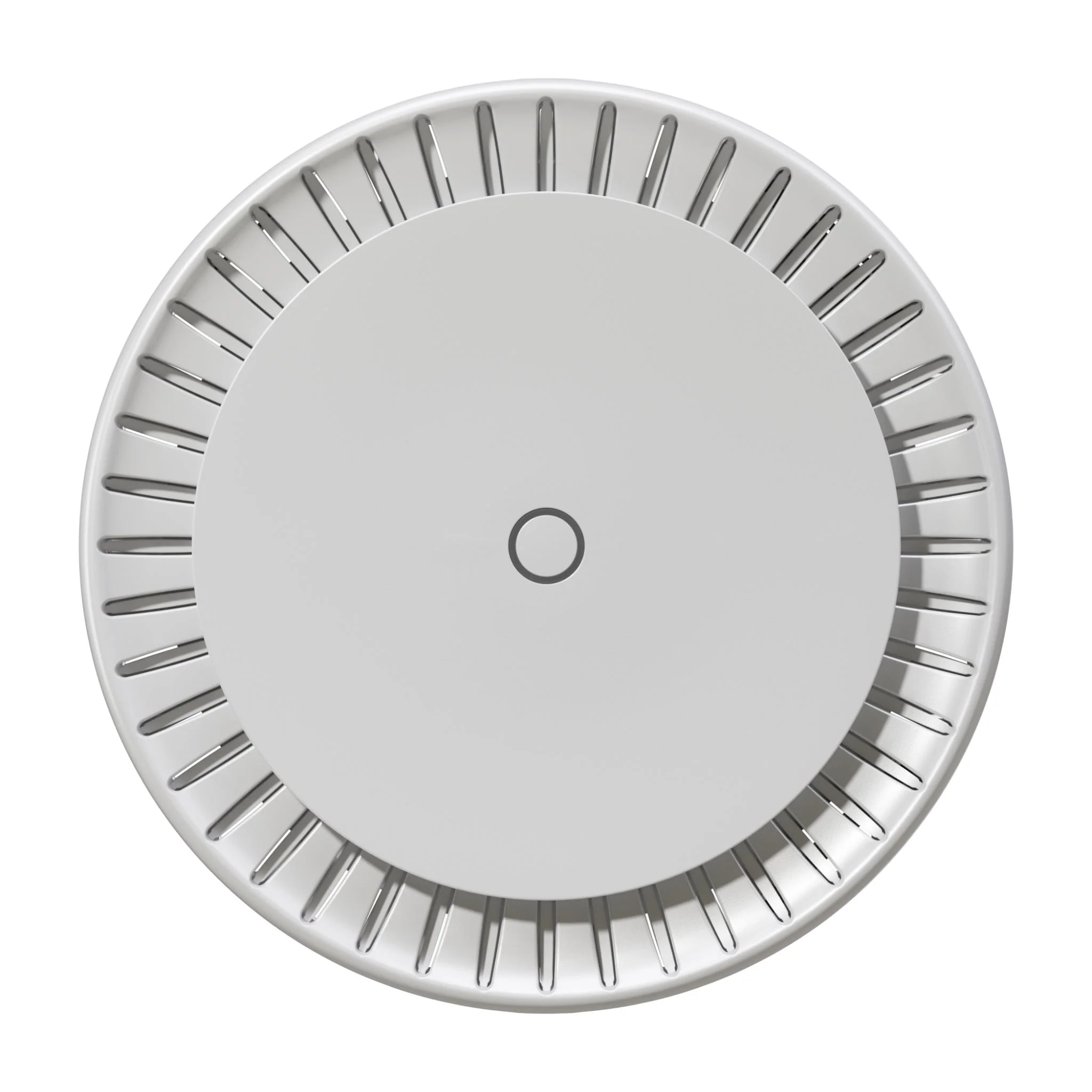

MikroTik Ceiling Access Point AX
Upgrade your office wireless network with cAP ax. Get excellent coverage and fast speed with 802.11ax standard. This device can handle a large number of clients and easily navigates wireless interference. Plus, it can power other devices and be easily managed through wifiwave2 CAPsMAN.
Tech Specs
Click here for the MikroTik Ceiling Access Point AX datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | cAPGi-5HaxD2HaxD |
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto (864 - 1800) MHz |
| Switch chip model | IPQ-6010 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $129.00 |
| Wireless capabilities | |
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 6 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | QCN-5052 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX1800 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 36 W |
| Max power consumption without attachments | 11 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
| PoE-out | |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 600 mA |
| High voltage PoE-Out current limit | 400 mA |
| Max total out (A) | 600 mA |
| Total output current | 0.4 |
| Total output power | 19.2 |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
| Other | |
| CPU temperature monitor | Yes |
| Mode button | Yes |
FAQs
Q: What is the MikroTik cAPGi‑5HaxD2HaxD used for?
A: The cAPGi‑5HaxD2HaxD is a ceiling‑ or wall‑mounted access point designed for enterprise indoor environments, providing dual‑band WiFi on 2.4 GHz and 5 GHz, dual Gigabit Ethernet ports, and advanced management via RouterOS.
Q: What wireless standards and speeds does the cAPGi‑5HaxD2HaxD support?
A: It supports IEEE 802.11 b/g/n/ax on 2.4 GHz and IEEE 802.11 a/n/ac/ax on 5 GHz, featuring WiFi 6 capabilities, dual‑chain MIMO, and combined throughput up to around AX1800 class (574 Mbps on 2.4 GHz plus 1200 Mbps on 5 GHz).
Q: What power and PoE functionality does the cAPGi‑5HaxD2HaxD offer?
A: This model supports 802.3af/at PoE‑in, a voltage range of 18‑57 V via either PoE or DC jack, and provides passive PoE‑out on its second Ethernet port (up to 57 V, limited current at 400‑600 mA) to power another device.
Q: What are the key hardware features and management capabilities of the cAPGi‑5HaxD2HaxD?
A: It features a quad‑core IPQ‑6010 CPU, 1 GB RAM, 128 MB NAND, runs RouterOS v7 with licence level 4, includes dual Gigabit LAN ports, supports PoE‑in/out, and has an industrial‑grade operating temperature range (‑40 °C to +70 °C).
Q: Where is the cAPGi‑5HaxD2HaxD best deployed and how should it be mounted?
A: It is ideal for indoor enterprise networks such as offices, hotels, schools or meeting areas. It supports ceiling or wall mounting using the provided brackets, and its PoE‑out means you can power another downstream device like a camera or switch from the same unit.
Resources
