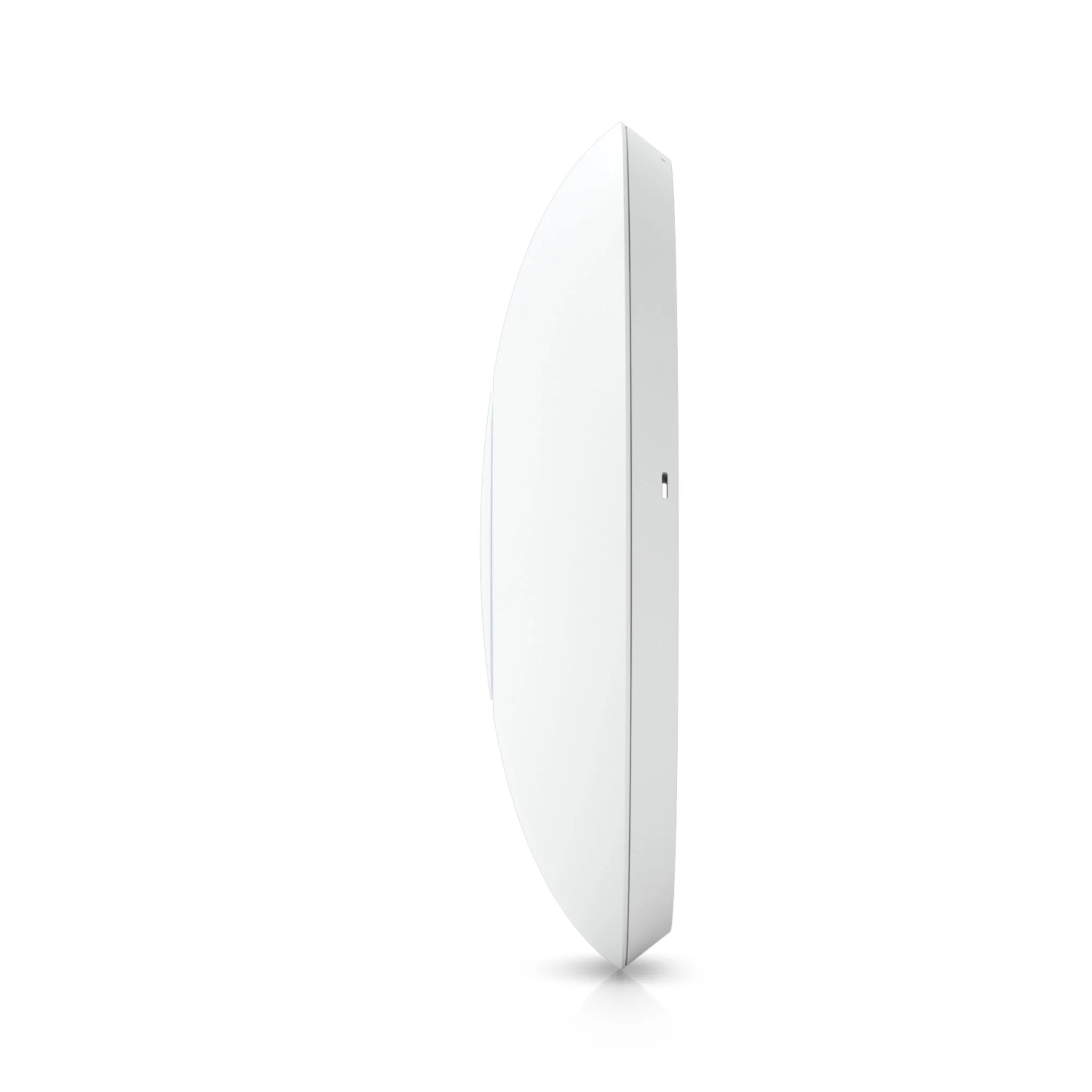

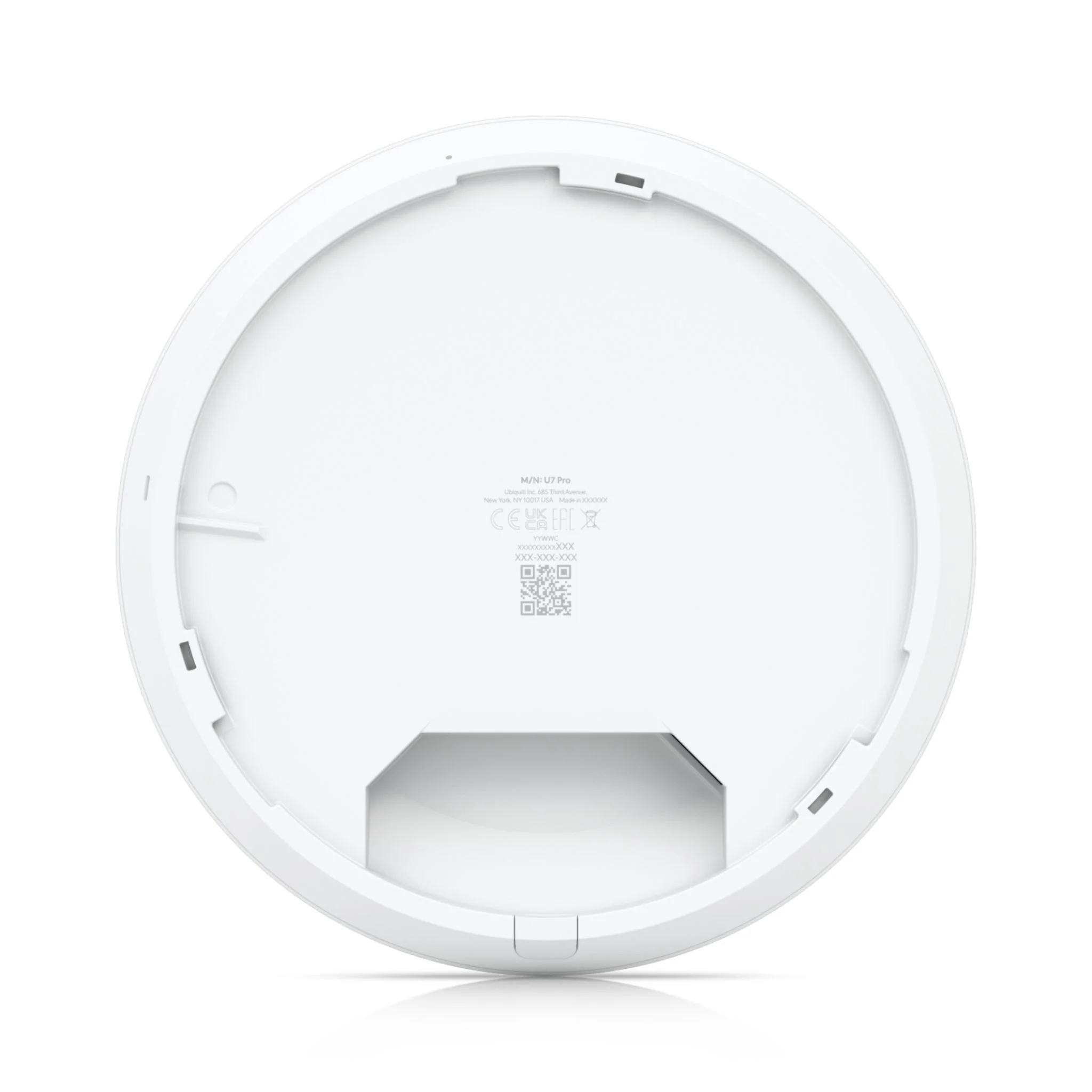

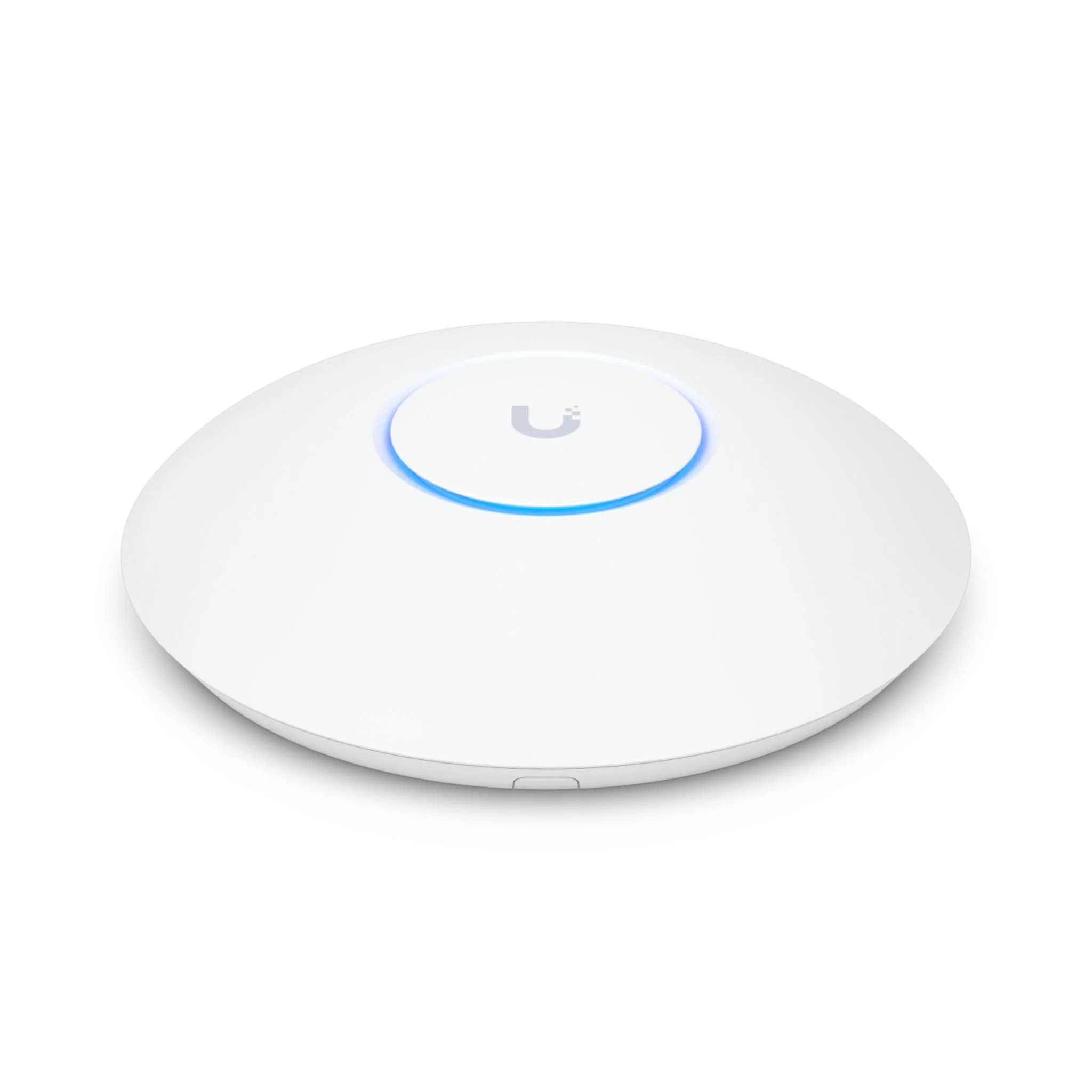

Ubiquiti UniFi U7 Pro
UniFi U7 Pro – Ceiling-Mount WiFi 7 Access Point with 6 GHz Support for High-Density Networks
The UniFi U7 Pro is a high-performance, ceiling-mounted WiFi 7 access point designed for demanding, high-density environments. With six spatial streams and support for the 6 GHz band, it delivers interference-free, ultra-fast connectivity ideal for large offices, education campuses, and hospitality venues.
Providing up to 140 m² (1,500 ft²) of coverage and supporting over 300 connected devices, the U7 Pro is built for scale. Its 2.5 GbE uplink ensures high-speed backhaul, while PoE+ power simplifies installation and reduces cabling complexity.
The U7 Pro brings next-generation wireless performance to ISP and enterprise deployments, offering improved efficiency, lower latency, and robust throughput for modern bandwidth-heavy applications.
Tech Specs
Click here for the UniFi U7 Pro datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Ø206 x 46 mm (Ø8.1 x 1.8") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO | 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz 5.8 Gbps (BW320) 5 GHz 4.3 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) |
| Antenna Gain | 6 GHz 5.8 dBi 5 GHz 6 dBi 2.4 GHz 4 dBi |
| Max. TX Power | 6 GHz 23 dBm 5 GHz 26 dBm 2.4 GHz 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7) 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 21W |
| Supported Voltage Range | 44—57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 680 g (1.5 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency |
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 8.0.28 and later |
Â
FAQs
Q: What is the Ubiquiti U7‑Pro and what makes it different from other UniFi APs?
A: The U7‑Pro is a tri-band WiFi 7 access point that supports 2.4 GHz, 5 GHz, and 6 GHz frequencies. It delivers faster throughput, lower latency, and more reliable connections than WiFi 6 devices—ideal for dense client environments.
Q: How many devices can the U7‑Pro handle, and what is its coverage range?
A: The U7‑Pro supports over 300 concurrent clients and provides up to 160 m² (1,750 ft²) of coverage, making it suitable for large homes, offices, and high-density deployments.
Q: What are the uplink and powering options for the U7‑Pro?
A: The U7‑Pro features a 2.5 GbE RJ45 uplink port and supports PoE+ (802.3at). It requires a PoE+ switch or injector for proper operation.
Q: Does the U7‑Pro support WiFi 7 features like MLO and 320 MHz channels?
A: Yes, the U7‑Pro supports Multi-Link Operation (MLO), 320 MHz channel width on the 6 GHz band, and 4K QAM modulation for maximum throughput and minimal interference.
Q: Is the U7‑Pro backward compatible with WiFi 6 and earlier devices?
A: Yes, it is fully backward compatible with WiFi 6/5/4 devices, ensuring seamless integration into existing networks while future-proofing for WiFi 7 clients.
