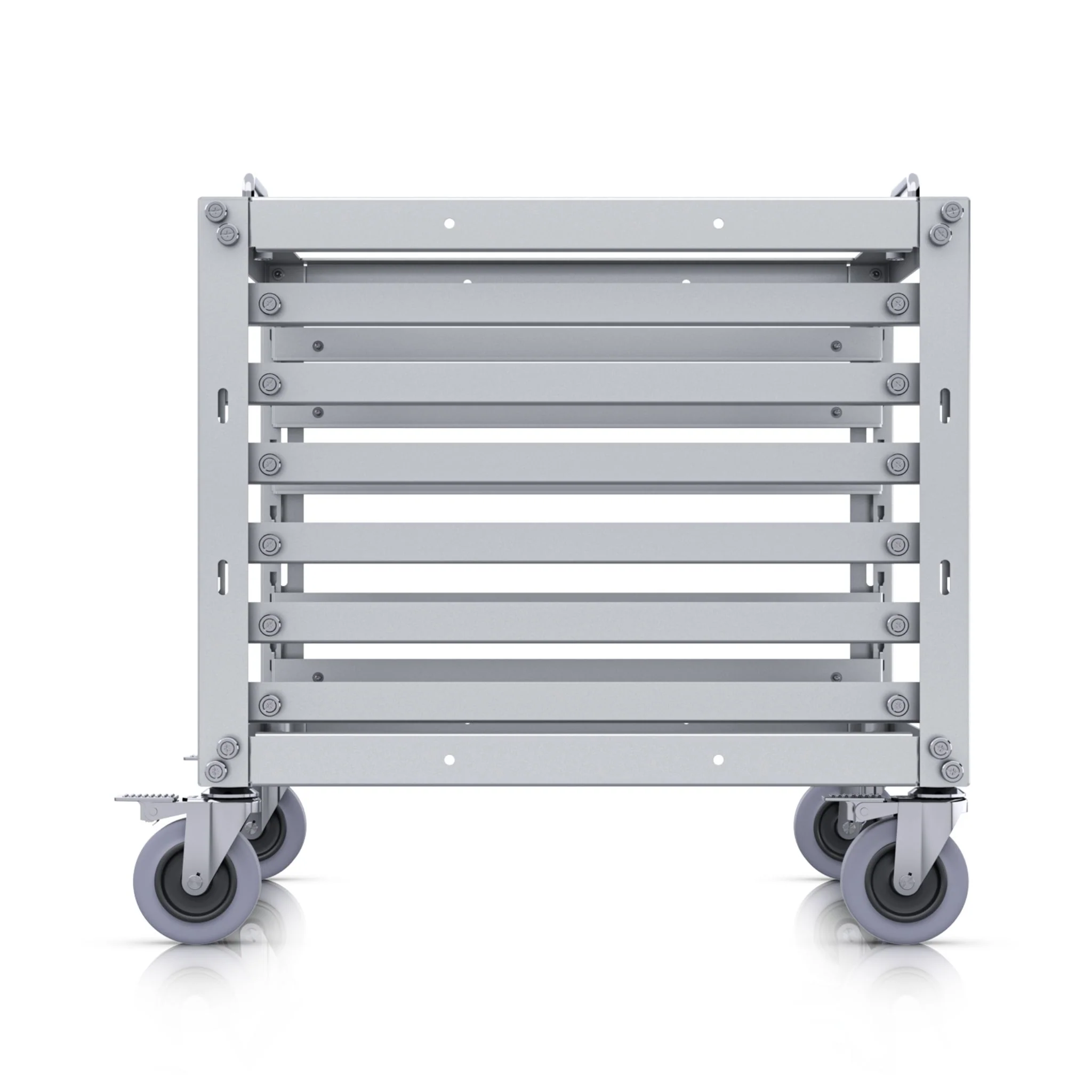

Ubiquiti Toolless Mini Rack
This 6U-sized device rack includes a 24-port blank patch panel that can be easily assembled without the need for tools. The rack also features lockable casters and allows for toolless device mounting.
Tech Specs
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | With handle and caster: 519 x 460 x 485 mm (20.43 x 18.11 x 19.09") Without handle and caster: 519 x 460 x 351 mm (20.43 x 18.11 x 13.82") |
| U Height | 6U |
| Weight | 10.3 kg (22.7 lb) |
| Rack Type | Open Frame |
| Material | Frame/Bracket: Cold rolled carbon steel (SPCC) Handle: Stainless steel |
| Treatment | Liquid Coating |
| Max. Weight Capacity | Single Toolless Mini Rack: Static: 80 kg (176 lb) Rolling: 45 kg (99 lb) Double Toolless Mini Racks with Stacking Kit: Static: 70 kg (154 lb) Rolling: 35 kg (77 lb) |
| Incompatible Devices | UniFi Switch (Gen1): US-24-250W, US-24-500W, US-48-500W, US-48-750W USG: USG, USG-Pro-4 EdgeSwitch: ES-24-250W, ES-24-500W, ES-48-500W, ES-48-750W EdgeRouter: ER-8 Others: CKG2-RM, ER-RMKIT, UACC-Pro-Max-16-RM |
FAQs
Q1: What is the Ubiquiti U-Rack-6U-TL?
A1: The U-Rack-6U-TL is a 6U-sized open-frame mini rack designed for easy deployment of UniFi rack-mountable devices. It features toolless assembly and includes a 24-port blank keystone patch panel.
Q2: What are the dimensions of the U-Rack-6U-TL?
A2: The rack's dimensions are:
-
With handle and casters: 519 x 460 x 485 mm (20.43 x 18.11 x 19.09")
-
Without handle and casters: 519 x 460 x 351 mm (20.43 x 18.11 x 13.82")
Q3: What is the weight capacity of the U-Rack-6U-TL?
A3: The U-Rack-6U-TL can support up to 35 kg (77 lb) of equipment.
Q4: What materials are used in the construction of the U-Rack-6U-TL?
A4: The frame and brackets are made from cold-rolled carbon steel (SPCC), while the handle is constructed from stainless steel. The rack is finished with a liquid coating for durability.
Q5: Is the U-Rack-6U-TL compatible with all Ubiquiti devices?
A5: The U-Rack-6U-TL is compatible with most rack-mountable Ubiquiti devices. However, it is not compatible with certain legacy devices, including:
-
UniFi Switch (Gen1) models: US-24-250W, US-24-500W, US-48-500W, US-48-750W
-
USG and USG-Pro-4
-
EdgeRouter ER-8
-
Cloud Key Gen2 Rackmount (CKG2-RM)
-
EdgeSwitch models: ES-48-500W, ES-48-750W
