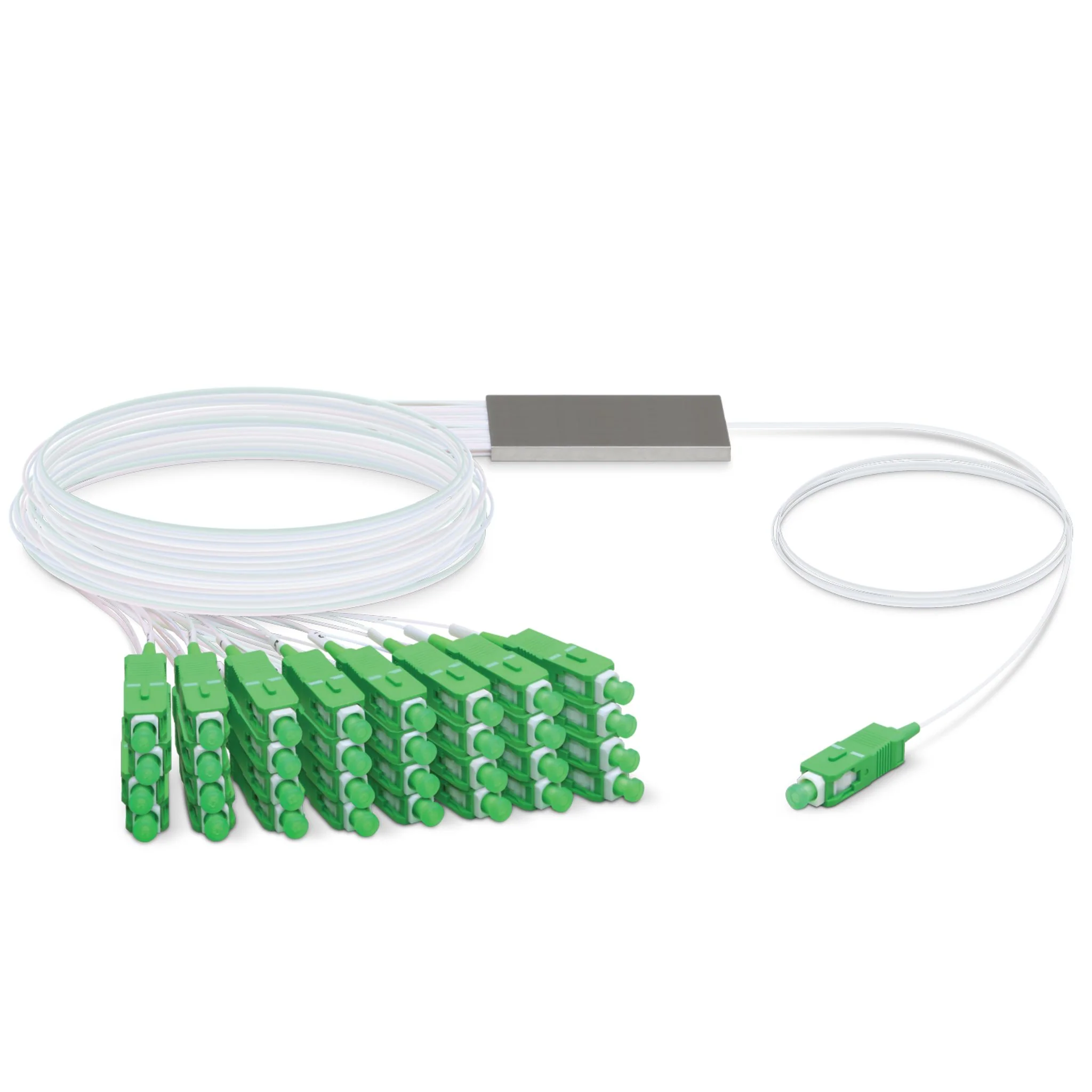

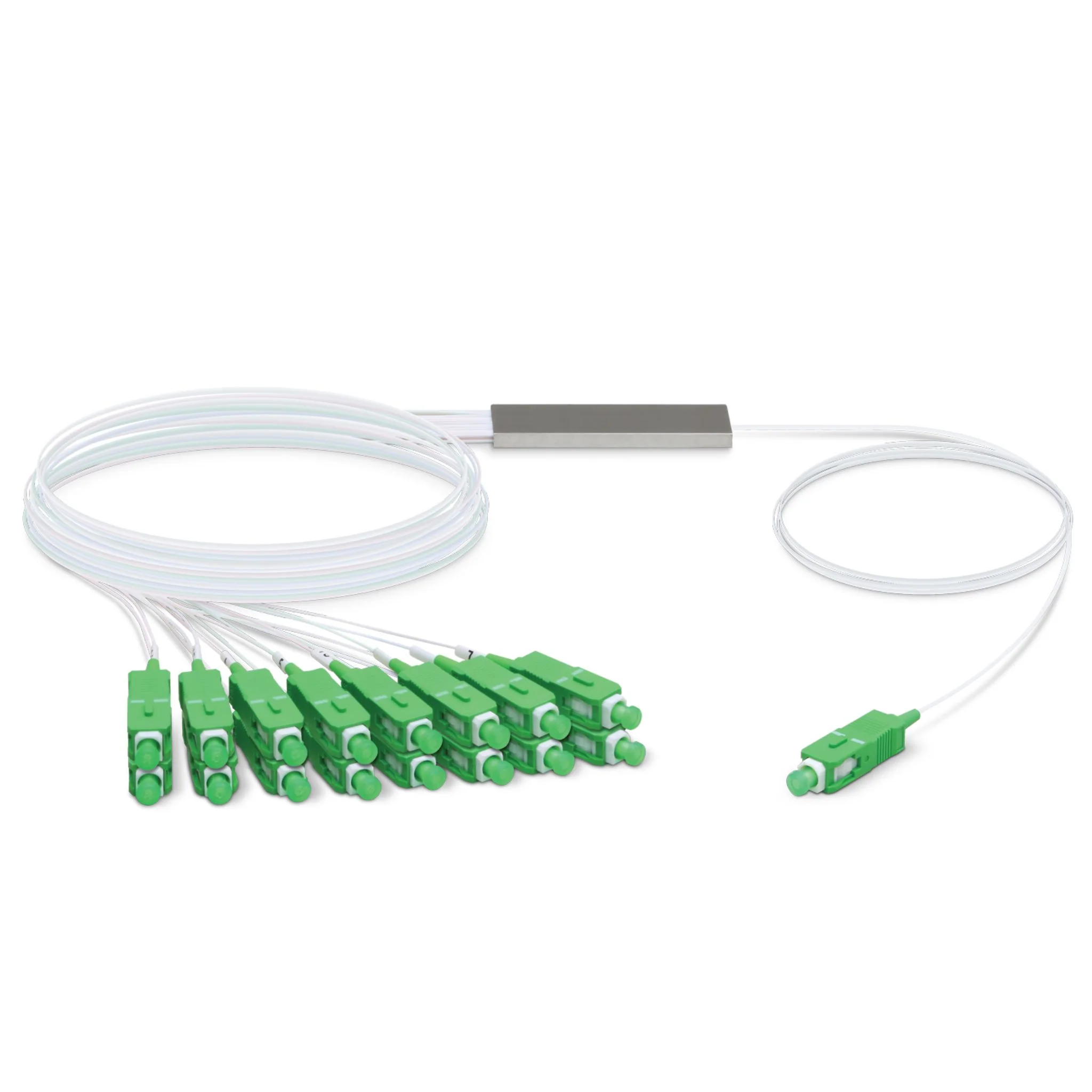

Ubiquiti UFiber Splitter

Device Specifications – UF-SPLITTER Series
Specification	UF-SPLITTER-4	UF-SPLITTER-8	UF-SPLITTER-16	UF-SPLITTER-32
Input	(1) SC/APC	(1) SC/APC	(1) SC/APC	(1) SC/APC
Outputs	(4) SC/APC	(8) SC/APC	(16) SC/APC	(32) SC/APC
Insertion loss with connectors	7.4 dB	10.5 dB	13.7 dB	17.0 dB
Uniformity loss	0.6 dB	0.8 dB	1.2 dB	1.5 dB
Polarization dependent loss	0.3 dB	0.3 dB	0.3 dB	0.3 dB
Wavelength bandwidth	1260-1650 nm	1260-1650 nm	1260-1650 nm	1260-1650 nm
Return loss (All ports)	50 dB	50 dB	50 dB	50 dB
Directivity	55 dB	55 dB	55 dB	55 dB
Fiber type	G657A1	G657A1	G657A1	G657A1
Ambient operating temperature	-40 to 85°C (-40 to 185°F)	-40 to 85°C (-40 to 185°F)	-40 to 85°C (-40 to 185°F)	-40 to 85°C (-40 to 185°F)
Total length	4.06 m (13.32')	4.06 m (13.32')	4.06 m (13.32')	4.08 m (13.39')
Weight	58 g (2.0 oz)	62 g (2.2 oz)	110 g (3.9 oz)	160 g (5.6 oz)
NDAA Compliant	Yes	-	-	-



FAQs

Q: What is the Ubiquiti UF-SPLITTER used for?
A: The UF-SPLITTER is a GPON optical splitter designed to divide a single fibre optic signal into multiple outputs for connecting multiple ONUs or endpoints.

Q: How many outputs does the UF-SPLITTER provide?
A: It provides multiple output ports, allowing a single GPON optical line to serve several subscriber devices efficiently.

Q: Can the UF-SPLITTER be used in enterprise and ISP networks?
A: Yes, it is ideal for high-density GPON networks, supporting enterprise, campus, and ISP fibre distribution systems.

Q: What type of fibre does the UF-SPLITTER use?
A: It uses single-mode fibre (SMF) designed for GPON applications, providing low-loss signal transmission over long distances.

Q: Does the UF-SPLITTER affect network performance?
A: No, it maintains high signal integrity with minimal insertion loss, ensuring reliable performance across all connected endpoints.
