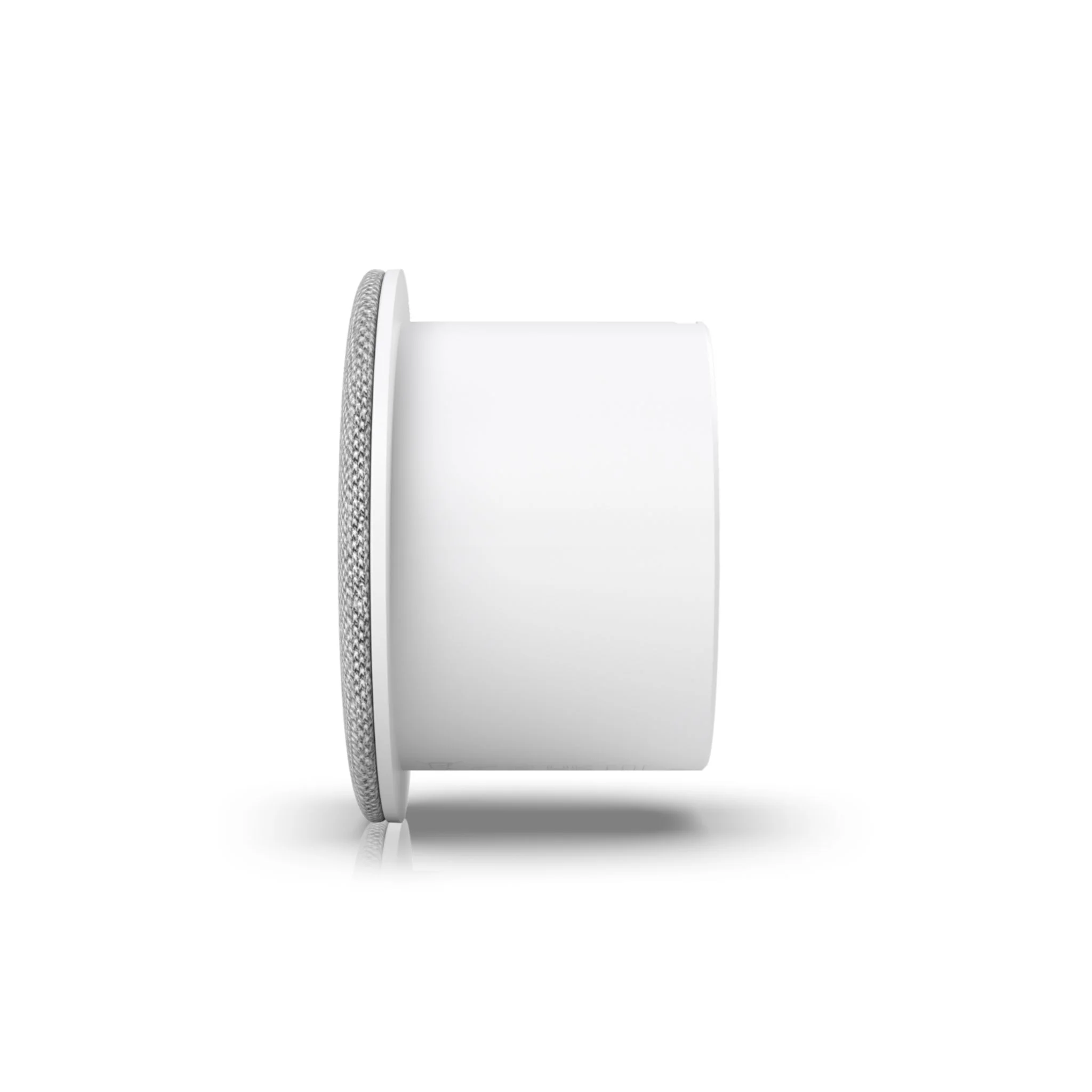

Ubiquiti UniFi AI Theta Audio
The UVC-AI-Theta now includes a wall microphone, featuring an advanced microphone array for high-quality audio and integrated 2-way audio capabilities. It also offers in-wall mounting support for convenient installation.
Tech Specs
Click here for the UniFi AI Theta Audio datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Ø61.5 x 39 mm (Ø2.4 x 1.5") |
| Audio | Speaker Microphone |
| Mounting | Flush mount (Included) |
| Hardware | |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mounting Material | Polycarbonate |
| Weight | UVC-AI-Theta-Audio: 65 g (2.3 oz) UVC-AI-Theta-Audio Flush Mount: 22 g (0.8 oz) Cable: 18 g (0.63 oz) |
| Power Method | USB Type C, 5V DC, 0.9A |
| Max. Power Consumption | 4.5W |
| Cable | Jacket Enclosure Dimensions: 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3") Jacket Enclosure Material: PVC Jacket Material: Woven fabric Cable Length: 1 m (3.3 ft) Cable Diameter: 3.3 mm (0.13") Cable Connector Type: Theta proprietary |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
| Software | |
| Management Application | UniFi Protect Web (Version 2.7.18 and later) UniFi Protect iOS™ and Android™ (Version 1.11.0 and later) |
FAQs
Q: What is the UVC-AI-Theta-Audio?
A: It’s a plug-and-play, high-performance two-way audio module (built-in microphone and speaker) that connects directly to the AI Theta Hub, enabling seamless voice interactions through UniFi Protect.
Q: What are the physical design and mounting options?
A: The module measures approximately Ø61.5 × 39 mm, weighing about 65 g. It's housed in durable aluminum alloy and polycarbonate and includes a flush-mount accessory for easy ceiling or wall installation.
Q: How is the UVC-AI-Theta-Audio powered and what’s its power draw?
A: Powered via USB-C at 5 V DC, 0.9 A, it consumes up to 4.5 W of power—making it efficient and easy to deploy.
Q: What are the operating environment and compliance standards?
A: It operates between –20 °C to 40 °C and meets FCC, IC, and CE certification standards. It is also NDAA compliant.
Q: Which software supports the UVC-AI-Theta-Audio?
A: It’s managed through the UniFi Protect application—on web (v2.7.18+) and mobile platforms (iOS v1.11.0+, Android v1.11.0+), offering full control over audio features and configuration.
