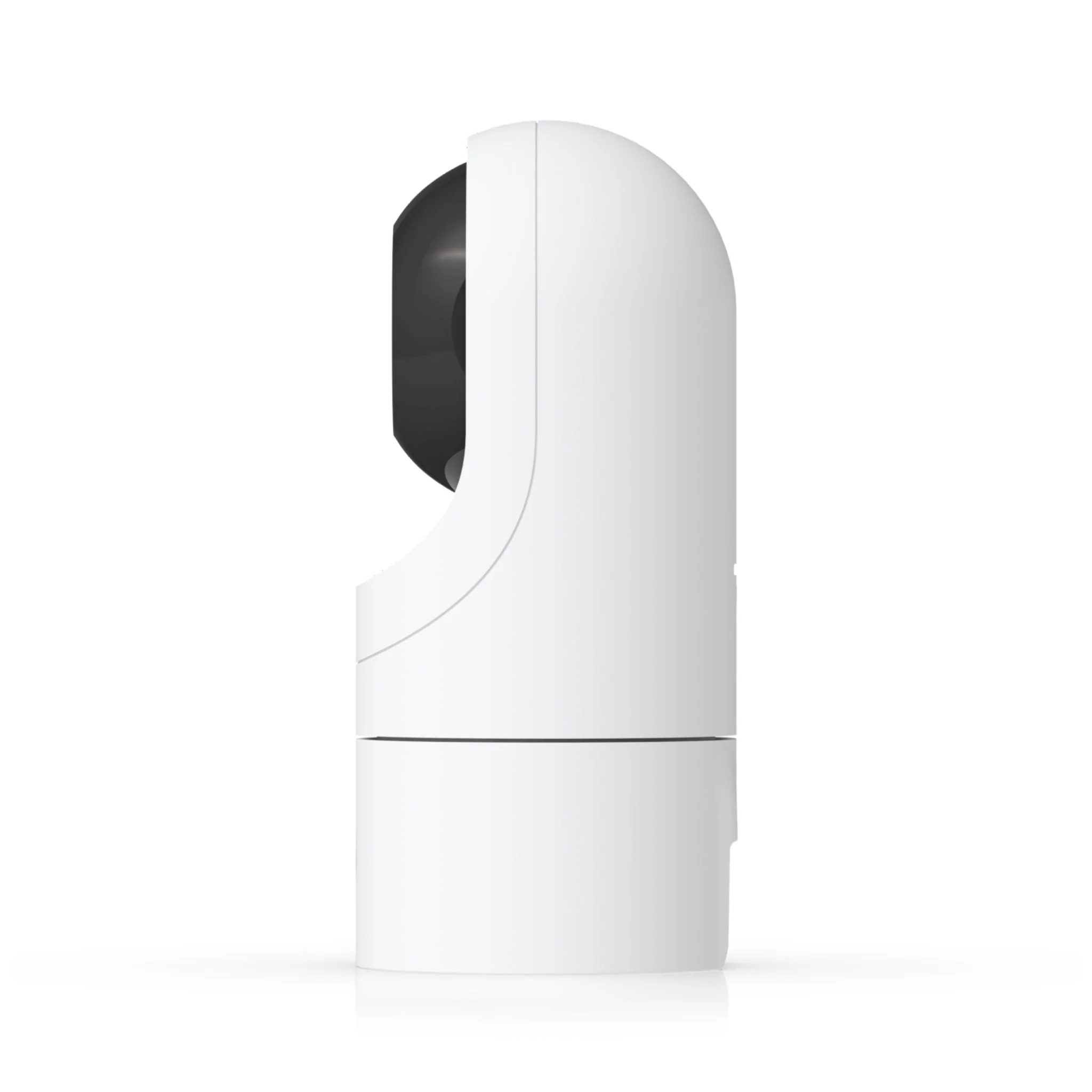

Ubiquiti UniFi G5 Flex
The Ubiquiti G5 Flex is a compact camera that offers flexible mounting options for easy deployment and versatile surveillance capabilities in any environment. With 2K (4MP) video resolution, 6 m (20 ft) IR night vision, and AI event detections, this camera can be mounted on a table or ceiling and powered using PoE, making it a convenient and efficient choice. Additionally, the integrated microphone allows for audio recording.
Tech Specs
Click here for the UniFi G5 Flex datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Ø48 x 107.5 mm (Ø1.9 x 4.2") |
| IR Night Vision | 6 m (20 ft) |
| Smart Detections | People, Vehicles, Animals ✓ |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IPX4 (While Covered) |
| Tamper Resistance | IK04 |
| Mounting | Desktop, Wall, pole mount, hard-ceiling (Included) In-ceiling mount, pendant, Pro mount (Optional) |
| Performance | |
| Networking Interface | 10/100 MbE RJ45 port |
| Video Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution (Video) | 4MP 2688 x 1512 (16:9) |
| Optics Sensor | 5MP CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Pole Mount Diameter | 1–1.5" (25–38 mm) |
| Weight | 170 g (6 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory-reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
FAQs
Q: What is the Ubiquiti UVC-G5-Flex and what is it designed for?
A: The UVC-G5-Flex is a compact, PoE-powered 4MP surveillance camera designed for both indoor and sheltered outdoor use. It offers 2K HD resolution, AI-powered event detection, and flexible mounting options, making it ideal for monitoring small to medium-sized areas.
Q: What are the key features of the UVC-G5-Flex?
A: Key features include:
-
4MP (2688 x 1512) resolution at 30 fps
-
102.4° horizontal field of view
-
Built-in IR LED illumination with a 20 ft (6 m) range
-
AI detection for people, vehicles, and animals
-
IPX4 weatherproof and IK04 impact-resistant enclosure
-
Integrated microphone (can be disabled in software)
-
Power over Ethernet (PoE) support
Q: What are the physical and environmental specifications?
A: The camera measures Ø48 x 107.5 mm (Ø1.9 x 4.2 in.) and weighs 170 g (6 oz). It features a polycarbonate enclosure and mount materials, ensuring durability. The camera operates in temperatures ranging from -20°C to 40°C (-4°F to 104°F) and humidity levels from 0% to 90% non-condensing.
Q: How is the UVC-G5-Flex powered and managed?
A: The camera is powered via Power over Ethernet (PoE) with a supported voltage range of 37–57V DC. It is managed through the UniFi Protect application, available on both desktop and mobile platforms, allowing for remote monitoring and configuration.
Q: What are the video compression and resolution capabilities?
A: The UVC-G5-Flex supports H.264 and MJPEG video compression formats. It delivers 4MP (2688 x 1512) resolution at a maximum frame rate of 30 fps, ensuring clear and smooth video playback suitable for various surveillance applications.
