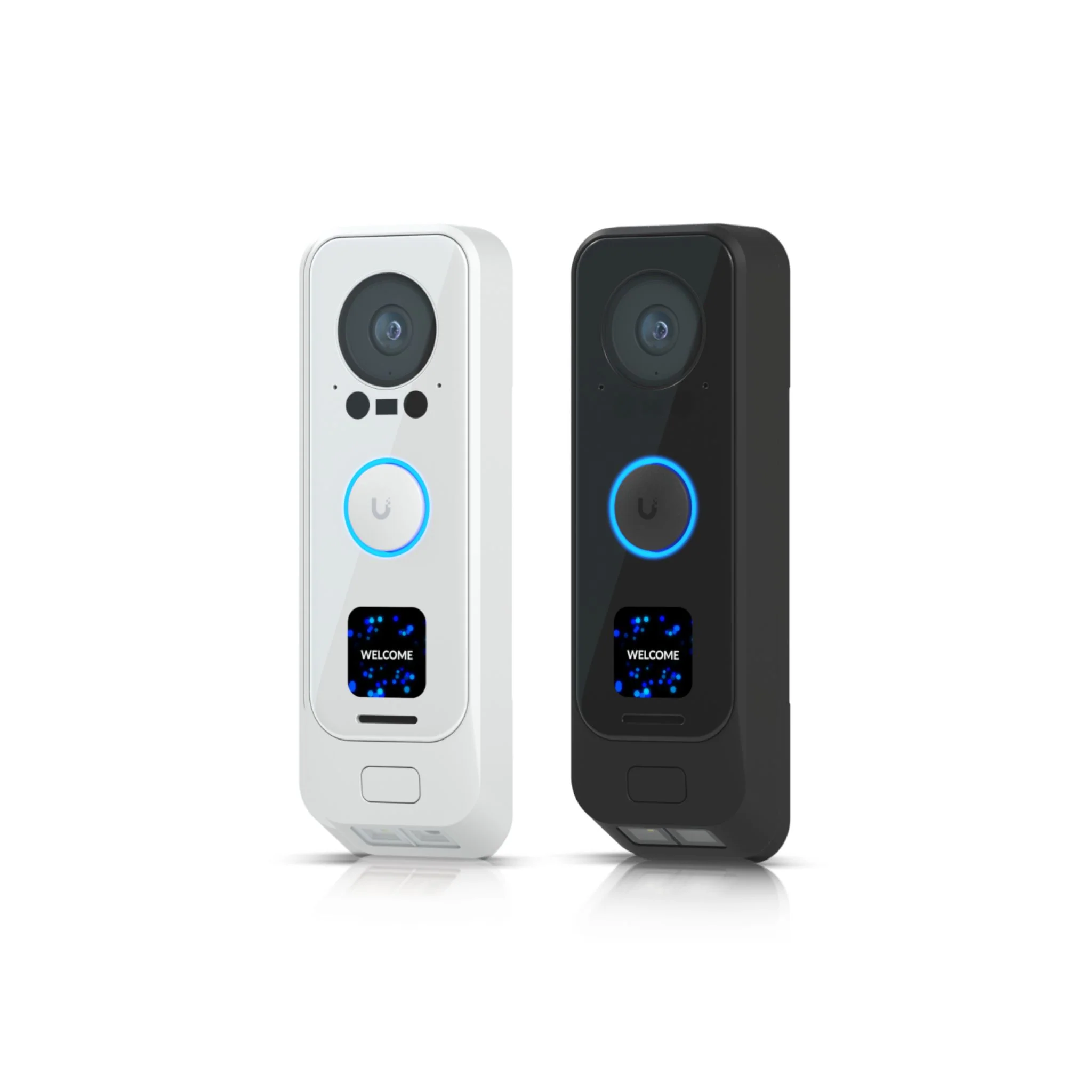

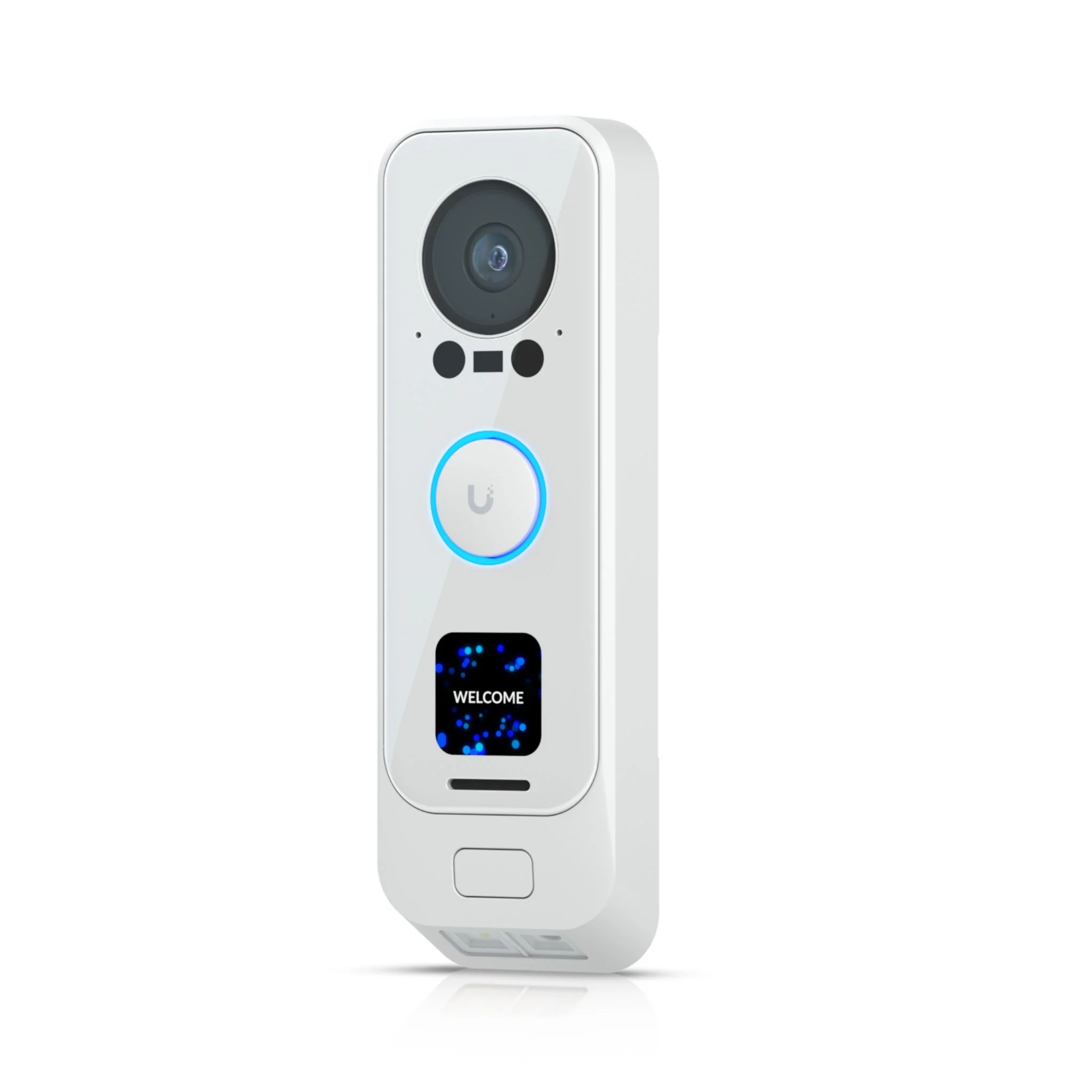

Ubiquiti UniFi G4 Doorbell Pro
The Ubiquiti G4 Doorbell Pro boasts a 5MP primary camera and an additional 8MP camera, both equipped with IR LED for enhanced night vision. With its built-in porch light, this WiFi-enabled video doorbell provides a constant, clear surveillance feed. It also includes two-way audio with echo-cancelling technology for easy interaction with visitors, and a programmable display for courier alerts and delivery instructions. Set up and configuration can be completed in minutes using the UniFi Protect app, making the G4 Doorbell Pro a convenient and efficient security solution.
Tech Specs
Click here for the UniFi G4 Doorbell Pro datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1") |
| IR Night Vision | 6 m (20 ft) |
| Smart Detections (People, Vehicles, Animals) | ✓ |
| Resolution | FHD |
| Field of View | Main camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Audio | Two-way audio |
| Weatherproofing | IPX4 |
| Mounting | Flat wall, 20° wedge (Included) |
| Performance | |
| Networking Interface | 802.11a/b/g/n/ac WiFi Bluetooth 5.0 GbE support (With UACC-Adapter-DBPOE) |
| Video | |
| Max. Frame Rate | 30 FPS |
| Resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
| Optics | |
| Sensor | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 10W |
| Power Method | 16—24V AC, 1.25A Max., 50/60 Hz USB-C power cable, 5V DC, 2A |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | Device: 253 g (8.9 oz) With flat wall mount: 286 g (10.1 oz) With 20° wedge mount: 325 g (11.5 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
| Button | (1) Ring button (1) Factory-reset |
| Compatible Chimes |
Mechanical Broan-NuTone: LA126WH, LA11WH, LA39WH Heath Zenith: SL-2735 Craftmade: CTPW-RG Newhouse Hardware: CHM3D Digital Broan-NuTone: LA600WH IQ AMERICA: DW-2850, DW-2840 |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
FAQs
Q: What is the Ubiquiti UVC-G4 Doorbell Pro EU and what features does it offer?
A: The UVC-G4 Doorbell Pro (EU) is a Wi-Fi–enabled video doorbell featuring dual cameras (primaries 5 MP and an 8 MP package lens), two-way echo-cancelled audio, built-in porch light, programmable display, and seamless setup via UniFi Protect.
Q: What are the video and night vision specifications?
A:
-
Main Camera: 5 MP CMOS with IR LED, outputs 1600×1200 (2 MP) at 30 fps
-
Package Camera: 8 MP sensor, outputs 1600×1200 at 2 fps (no IR)
-
View Angles: Main: H 138°, V 114°, D 155°; Package: H 97.5°, V 79.4°, D 118.2°
Q: How is it powered and what are the installation options?
A: It supports power via 16–24 VAC (up to 1.25 A) or USB-C 5 V, 2 A, plus PoE via optional PoE adapter (37–57 V DC). Installation includes flat wall and 20° wedge mounts; kits for both are included.
Q: What are its build quality and environmental specs?
A: The doorbell features a sturdy polycarbonate and aluminum alloy enclosure with IPX4 weather resistance. Dimensions are 160.6 × 51.7 × 28.7 mm (≈6.3 × 2.0 × 1.1 in), weighing 253 g (without mount). Operating temperature ranges from –10 °C to 40 °C.
Q: What software and alerts does it integrate with?
A: Managed via the UniFi Protect platform (web and mobile), it provides intelligent AI detections, motion sensor alerts, and a programmable display for messages.
Resources
Original: $388.52
-70%$388.52
$116.56More Images
