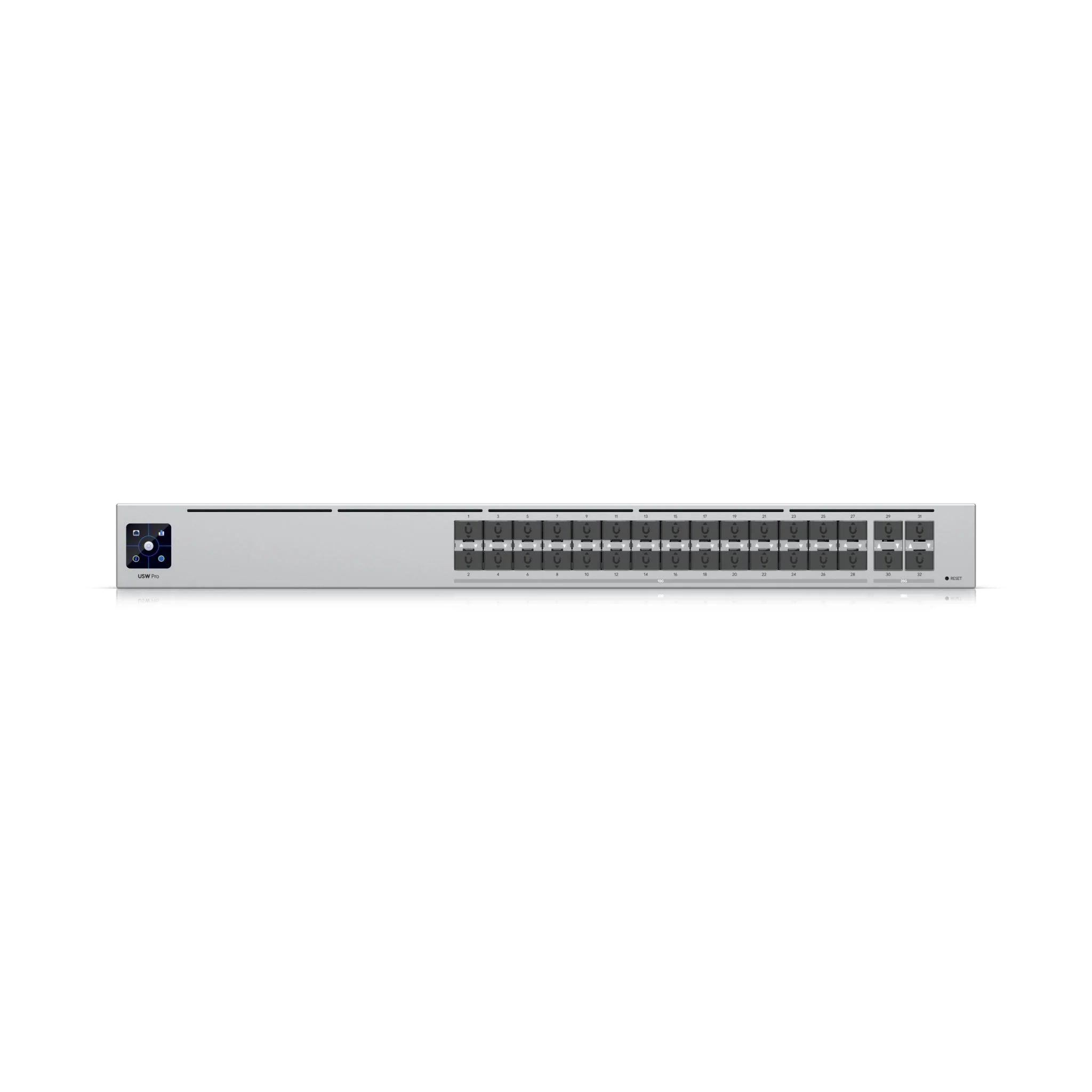

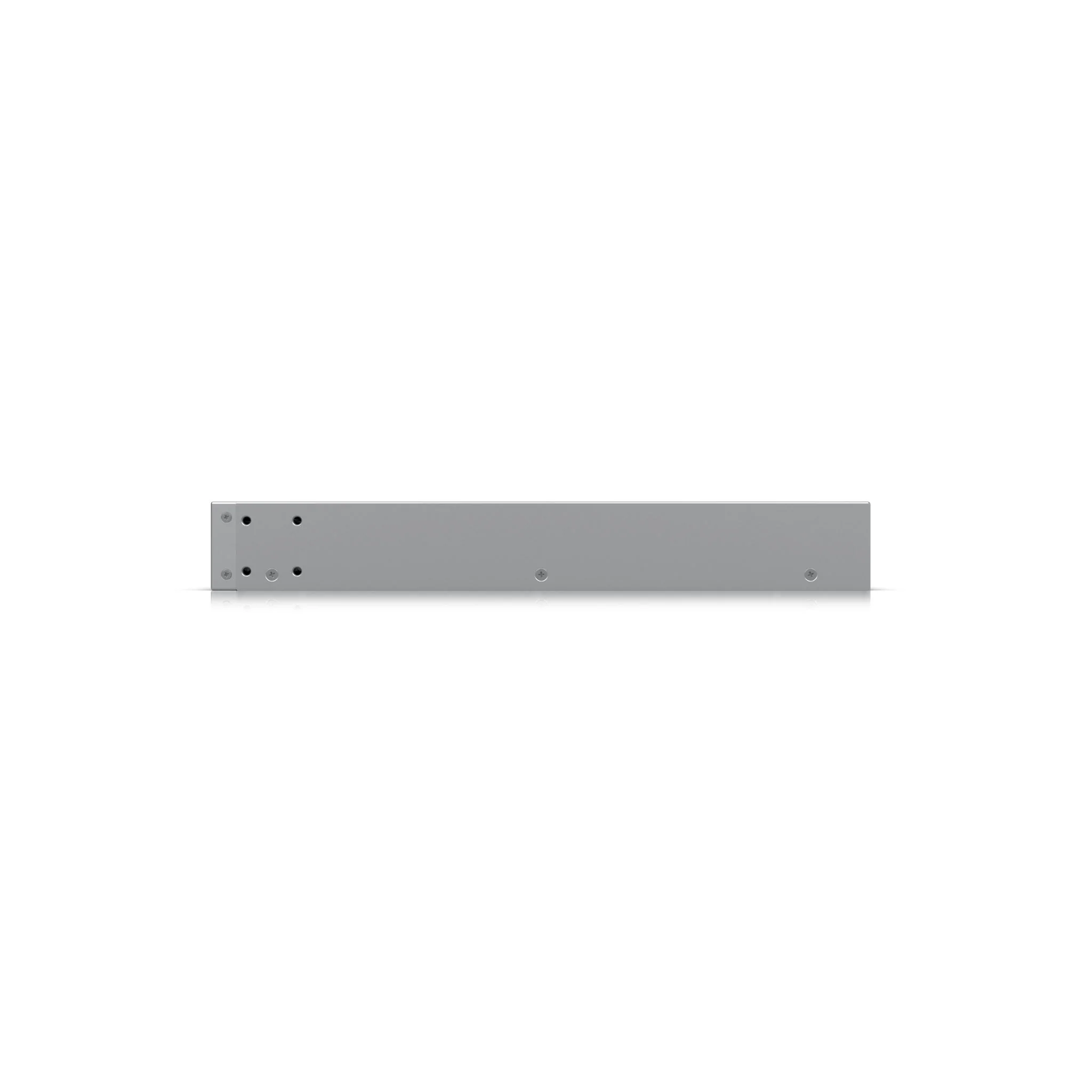

Ubiquiti UniFi Hi-Capacity Aggregation Switch

This Layer 3 switch is specifically designed for high-capacity connections and supports both 10G SFP+ and 25G SFP28. It has a total of 32 ports, with 28 dedicated to 10G SFP+ and 4 for 25G SFP28. Additionally, it is equipped with DC power backup capabilities, making it a reliable choice for Layer 3 switching needs.

Any EU products are supplied with the appropriate UK power method at no extra cost.

Tech Specs

Click here for the USW-PRO-AGGREGATION datasheet.

Device Specifications
Overview
Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Port Layout	10G SFP+: 28 (10G/1G) 25G SFP28: 4 (25G/10G/1G)
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Performance
Switching Capacity	760 Gbps
Total Non-Blocking Throughput	380 Gbps
Forwarding Rate	565 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
L3 Table Size	ARP Entries: 16,000 IPv4 Routes: 16,000
Packet Buffer Size	4 MB
Access Lists	IPv4: 128 MAC: 128
Layer 3 Features
DHCP Server	Local Networks: ✓
DHCP Relay	✓
Inter-VLAN Routing	Local Networks: ✓
Static Routing	Local Networks: ✓
Layer 2 Features
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles	Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron: ✓
Advanced IGMP Configuration	Querier, Fast Leave, Router Port: ✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Hardware
Max. Power Consumption	100W
Power Method	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 100W
Supported Voltage Range	100—240V AC
Management	Ethernet, AR
Heat Dissipation (Excluding PoE Output)	341.2 BTU/hr
Weight	Without mounting brackets: 4.6 kg (10.1 lb) With mounting brackets: 4.7 kg (10.4 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel
Software
Application Requirements	UniFi Network Version 6.1.25 and later



FAQs

Q: What is the Ubiquiti USW‑Pro‑Aggregation and what is it designed for?
A: The USW‑Pro‑Aggregation is a fully managed Layer 3 UniFi switch featuring 28 × 10G SFP+ ports and 4 × 25G SFP28 ports. It's designed for high-capacity aggregation in enterprise networks, providing high-speed connectivity and silent operation.

Q: What are the performance specifications of the USW‑Pro‑Aggregation?
A:

• Switching Capacity: 760 Gbps

• Non-Blocking Throughput: 380 Gbps

• Forwarding Rate: 565 Mpps

• MAC Address Table Size: 32,000 entries

• Packet Buffer Size: 4 MB

• Supported VLANs: 1,000

• Layer 3 Features: ARP Entries: 16,000; IPv4 Routes: 16,000; Access Lists: 128 IPv4, 128 MAC


Q: What are the design features of the USW‑Pro‑Aggregation?
A: The switch features a fanless design for silent operation, a 1.3" touchscreen LCM for status monitoring, and a 1U rackmountable form factor. It weighs 4.6 kg (10.14 lb) without mounting brackets and 4.7 kg (10.36 lb) with brackets.

Q: What are the environmental and compliance specifications?
A:

• Operating Temperature: -5 to 40°C (23 to 104°F)

• Operating Humidity: 10–90% non-condensing

• Certifications: CE, FCC, IC

• NDAA Compliant: Yes


Q: What software is required to manage the USW‑Pro‑Aggregation?
A: The switch is managed via the UniFi Network Application (version 5.12.11 or later), providing centralized control, monitoring, and configuration.
