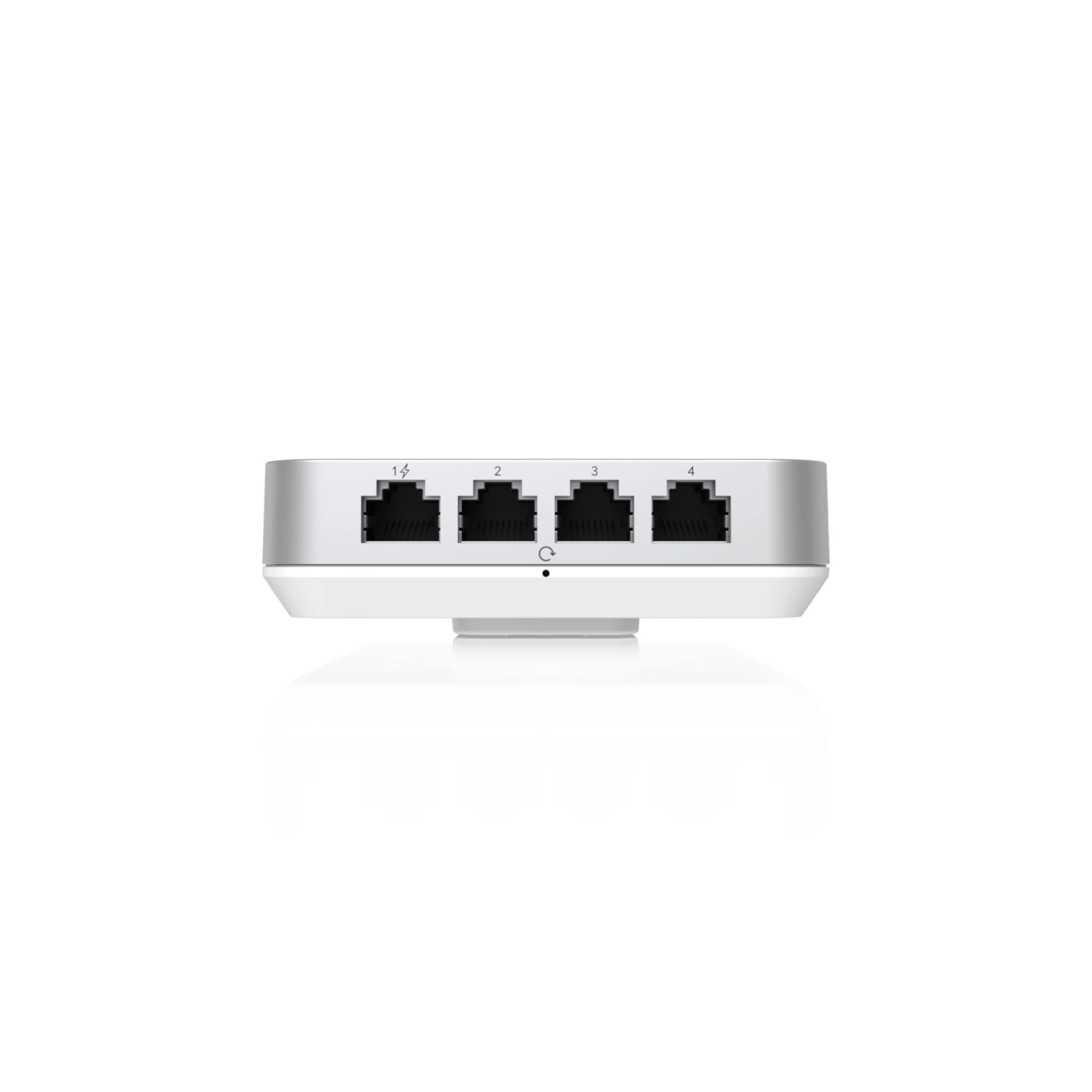

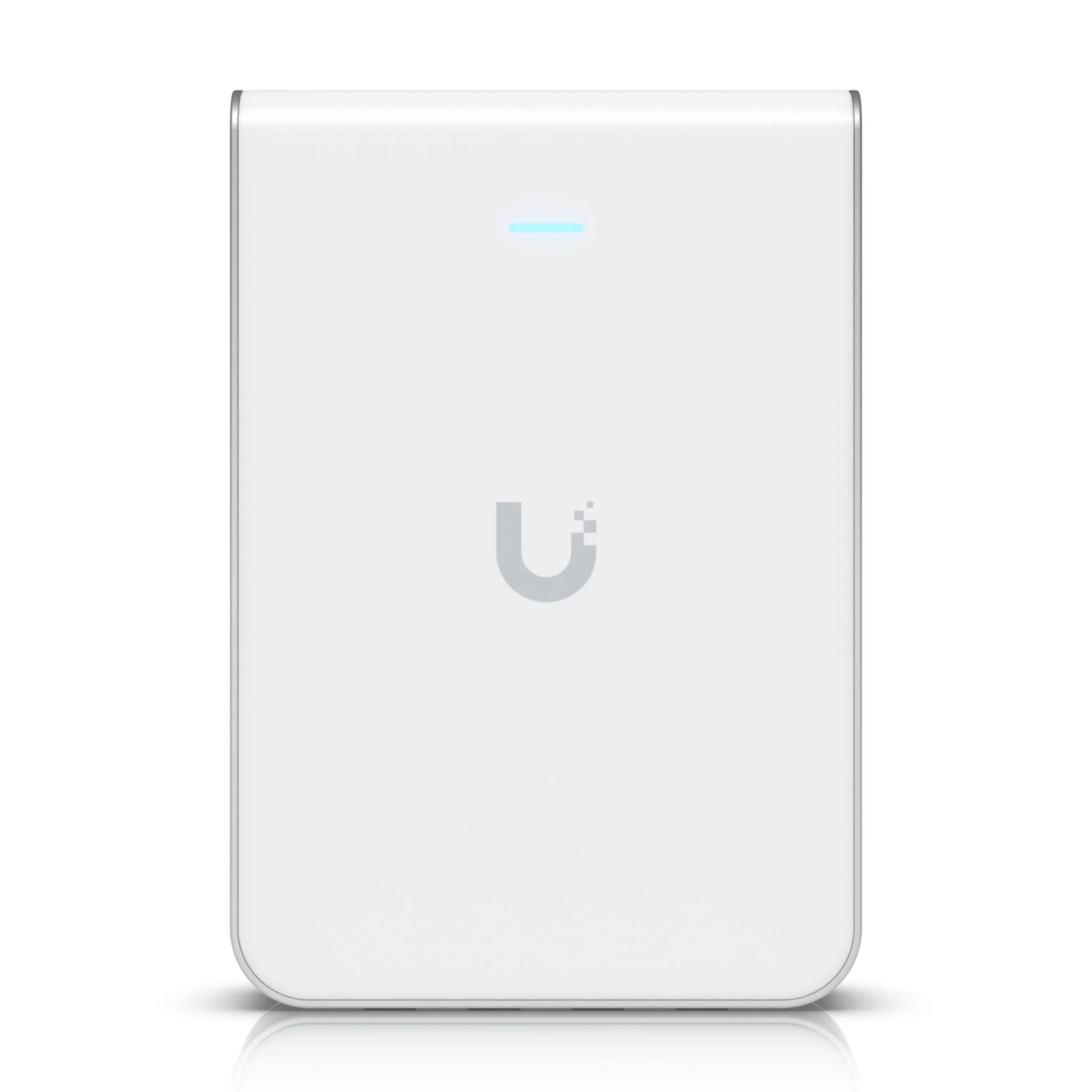

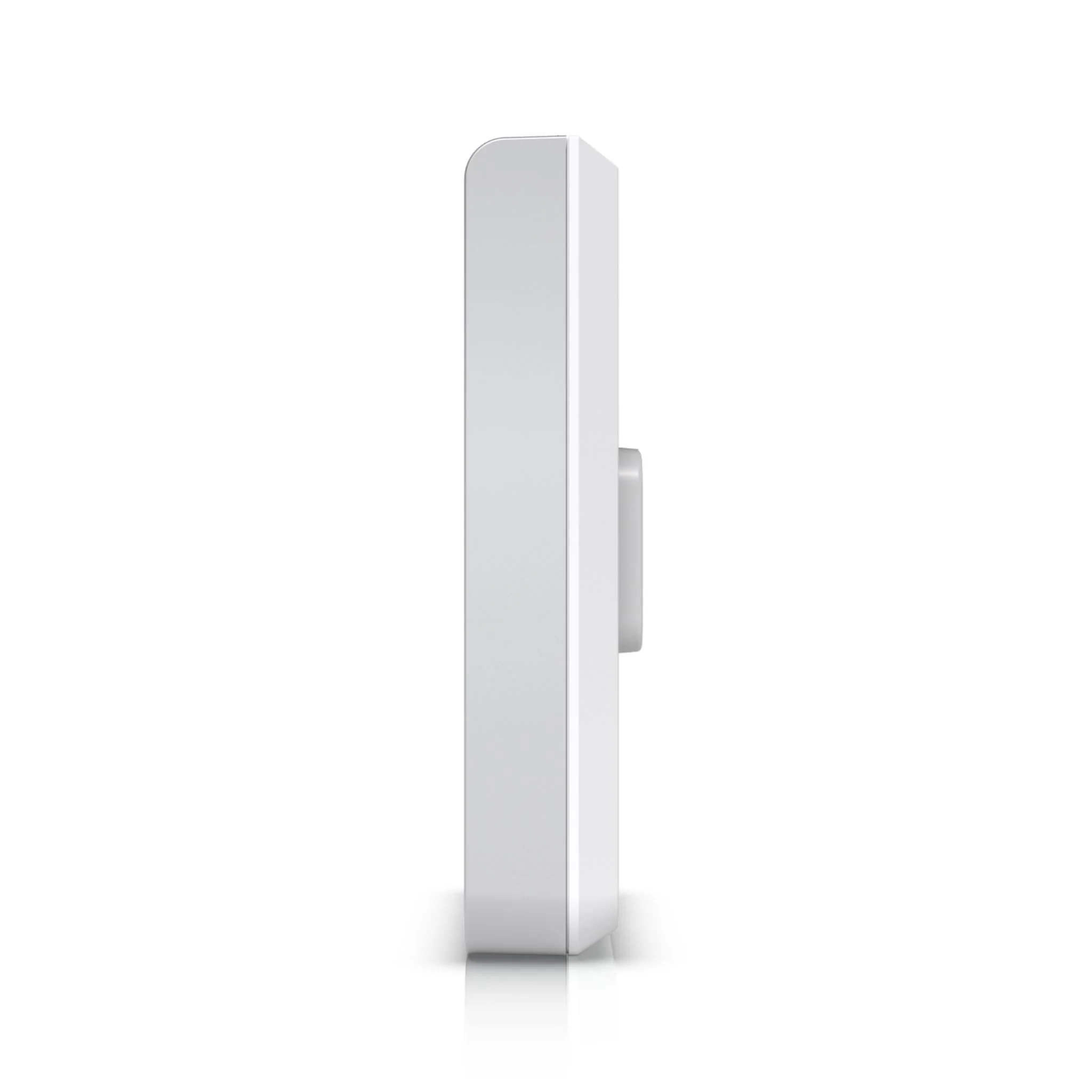

Ubiquiti UniFi U6 In-Wall
UniFi U6 In-Wall – Wall-Mount WiFi 6 Access Point with Built-In 4-Port Switch
The UniFi U6 In-Wall is a wall-mounted WiFi 6 access point with six spatial streams, designed to provide high-performance connectivity and wired networking in single-room or small-area deployments. Covering up to 115 m² (1,250 ft²) and supporting over 300 connected devices, it’s ideal for hotel rooms, offices, classrooms, and meeting spaces where both wireless and wired connections are required.
Powered via PoE or PoE+*, the U6 In-Wall integrates a 4-port Gigabit switch, including one PoE output port for powering devices such as VoIP phones or small IP cameras. Its discreet, wall-mounted design blends into any interior while maintaining full UniFi Network management for centralised configuration and monitoring.
Combining enterprise-grade wireless performance, wired connectivity, and easy installation, the U6 In-Wall is a versatile choice for high-quality, room-specific networking in hospitality, education, and business environments.
*PoE injector or switch sold separately.
Tech Specs
Click here for the UniFi U6 In-Wall Datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 139.7 x 96 x 31.2 mm |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 6 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 300+ |
| Uplink | GbE |
| Mounting | Wall (Mount Included) |
| Power Method | PoE PoE+ (Required for PoE output) |
| Performance | |
| MIMO | 5 GHz: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.8 Gbps (BW160) 2.4 GHz: 573.5 Mbps (BW40) |
| Antenna Gain | 5 GHz: 5.9 dBi 2.4 GHz: 5 dBi |
| Max. TX Power | 5 GHz: 26 dBm 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 13W (Excluding PoE output) |
| Networking Interface | (1) Data-in: GbE RJ45 port (4) Data-out: GbE RJ45 ports |
| Weight | 460 g (1 lb) |
| Management | Ethernet Bluetooth Built-In Switch: (4) GbE ports with (1) PoE output |
| Enclosure Material | Plastic, aluminum |
| Mount Material | Aluminum |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 6.0.45 and later |
FAQs
Q: What is the Ubiquiti U6‑IW and what is it used for?
A: The U6‑IW is an in-wall WiFi 6 access point designed to provide high-speed wireless coverage for individual rooms, ideal for hotels, apartments, and offices.
Q: What wireless standards and frequencies does the U6‑IW support?
A: It supports IEEE 802.11ax (WiFi 6) on 2.4 GHz and 5 GHz bands with 2×2 MIMO, delivering fast speeds and low latency for multiple connected devices.
Q: How is the U6‑IW powered and connected?
A: The device is powered via 802.3af/at PoE through a Gigabit Ethernet port, allowing a single-cable solution for both power and data.
Q: How many clients can the U6‑IW handle simultaneously?
A: The U6‑IW is designed for room-level deployments and can support a moderate number of clients per room while maintaining reliable performance.
Q: How is the U6‑IW managed?
A: It integrates with the UniFi Network Application for centralised configuration, monitoring, performance analytics, and firmware updates.
