Ubiquiti UFiber WiFi

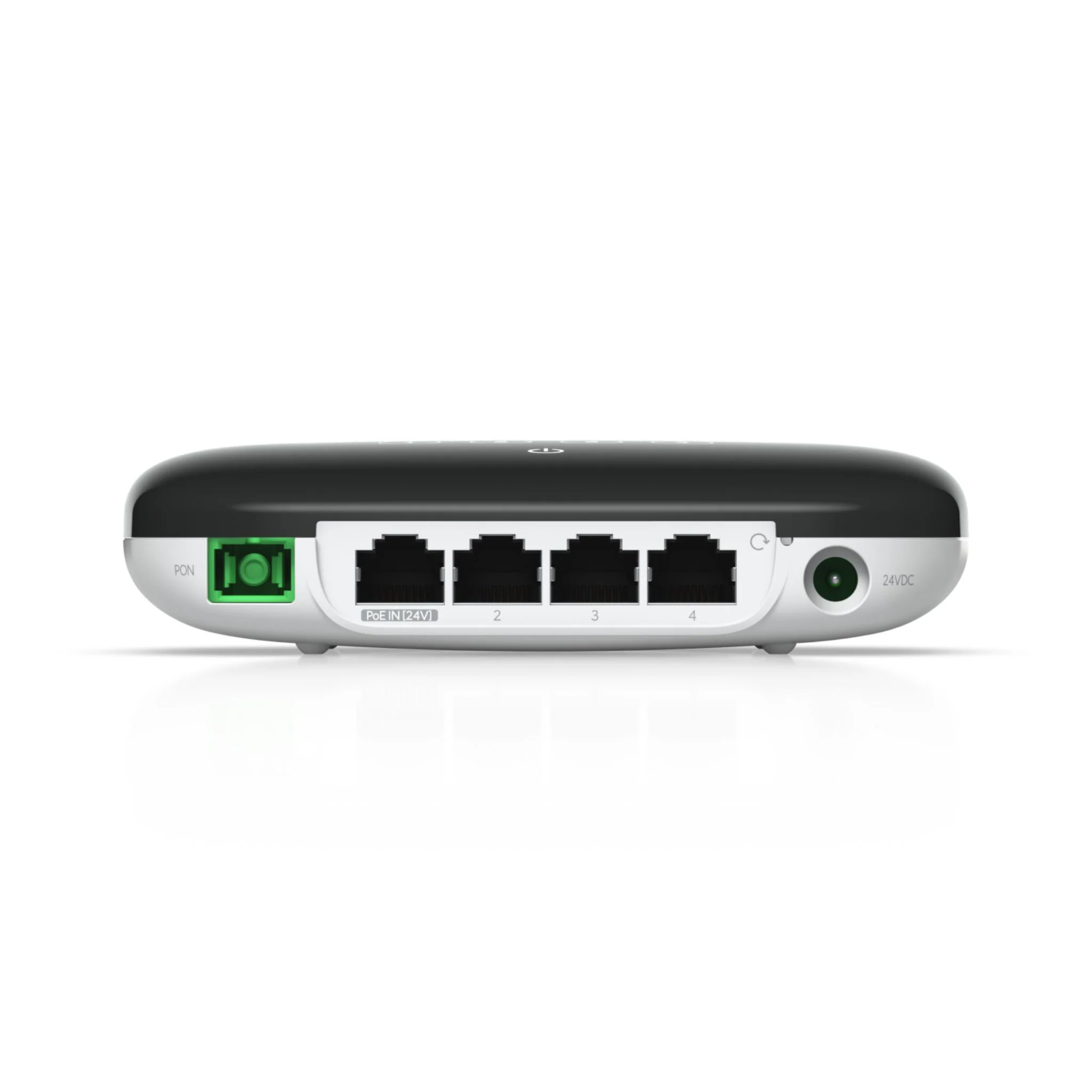

With the same compact design as its UFiber GPON CPEs, the UF-WIFI is a sophisticated GPON router that features 1x GPON WAN port and 4x Gigabit Ethernet RJ45 ports. Additionally, it serves as a 2.4GHz Wireless AP, offering speeds of up to 300Mbps. The UF-WIFI can be powered via the provided mains cable or 24v Passive PoE through LAN port 1.
Tech Specs
Click here for the Ubiquiti UFiber WiFi datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 126.3 x 126.1 x 31.7 mm (5 x 5 x 1.3") |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | UV-stabilized polycarbonate (PC110U) |
| Hardware | |
| Networking Interface | (1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports WiFi 802.11n |
| Management Interface | Ethernet In-Band |
| PON Power Method | DC Jack, 24V DC 24V Passive PoE (Pins 4, 5+; 7, 8-) |
| Power Supply | Universal AC/DC adapter, 100—240V AC, 50/60 Hz, 24V/0.5A |
| Supported Voltage Range | 10–30V DC (passive PoE) 5V DC (adapter) |
| Max. Power Consumption | 7W |
| Total Non-Blocking Line Rate | Downstream: 2.488 Gbps Upstream: 1.244 Gbps |
| Normal Range of Optical Module | TX: 1.5 to 5 dBm RX: -8 to -28 dBm |
| Max. WiFi TX Power | 2.4 GHz: 20 dBm |
| MIMO | 2.4 GHz: 2 x 2 |
| Max. WiFi Radio Rate | 2.4 GHz: 300 Mbps |
| Antenna Gain | 2.4 GHz: 1 dBi |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| LEDs | |
| PON Status | (3) Signal LEDs All-OFF: bootup 1x red: signal too low (< -28 db) 1x white: signal low (≥ -28 db) 2x white: signal good (≥ -25 db) 3x white: signal strong (≥ -11 db) 1x red + 2x white: signal too strong (≥ -8 db) 3x red: no signal LEDs alternate between 3x red and a signal strength indicator: No authority |
| Ethernet | Steady white: link up Blinking white: activity OFF: link down |
| Power | White: ON |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti Specific Features | UISP Mobile App |
| WiFi Standards | 802.11 b/g/n |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
| Fiber | |
| Operating Wavelength | TX: 1310 nm RX: 1490 nm |
| Line Code | Scrambled NRZ |
| Optical Interface Nominal Bit Rate | Downstream: 2488.32 Mbit/s Upstream: 1244.16 Mbit/s |
| Physical Reach | 20 km |
| Supported Data Rates | 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Â
FAQs
Q: What frequency range does the Ubiquiti UF-WiFi operate on?
A: The UF-WiFi operates in the 5.15–5.85 GHz band, delivering stable high-speed wireless connectivity for outdoor point-to-point and point-to-multipoint networks.
Q: Does the UF-WiFi support Wi-Fi for local access?
A: Yes, the UF-WiFi features integrated Wi-Fi, allowing devices to connect directly for configuration, monitoring, or local network access.
Q: How does the UF-WiFi simplify deployment?
A: The UF-WiFi provides plug-and-play functionality, enabling fast and easy installation without complex network configuration.
Q: Can the UF-WiFi be used for long-range outdoor links?
A: Yes, its high-gain antenna and airMAX technology make it suitable for reliable long-distance point-to-point connections in outdoor environments.
Q: How is the UF-WiFi powered and managed?
A: The device uses Passive PoE for simple deployment and can be configured or monitored via Ubiquiti’s airOS interface for easy network management.
